GNSS Receiver (u-blox M10)

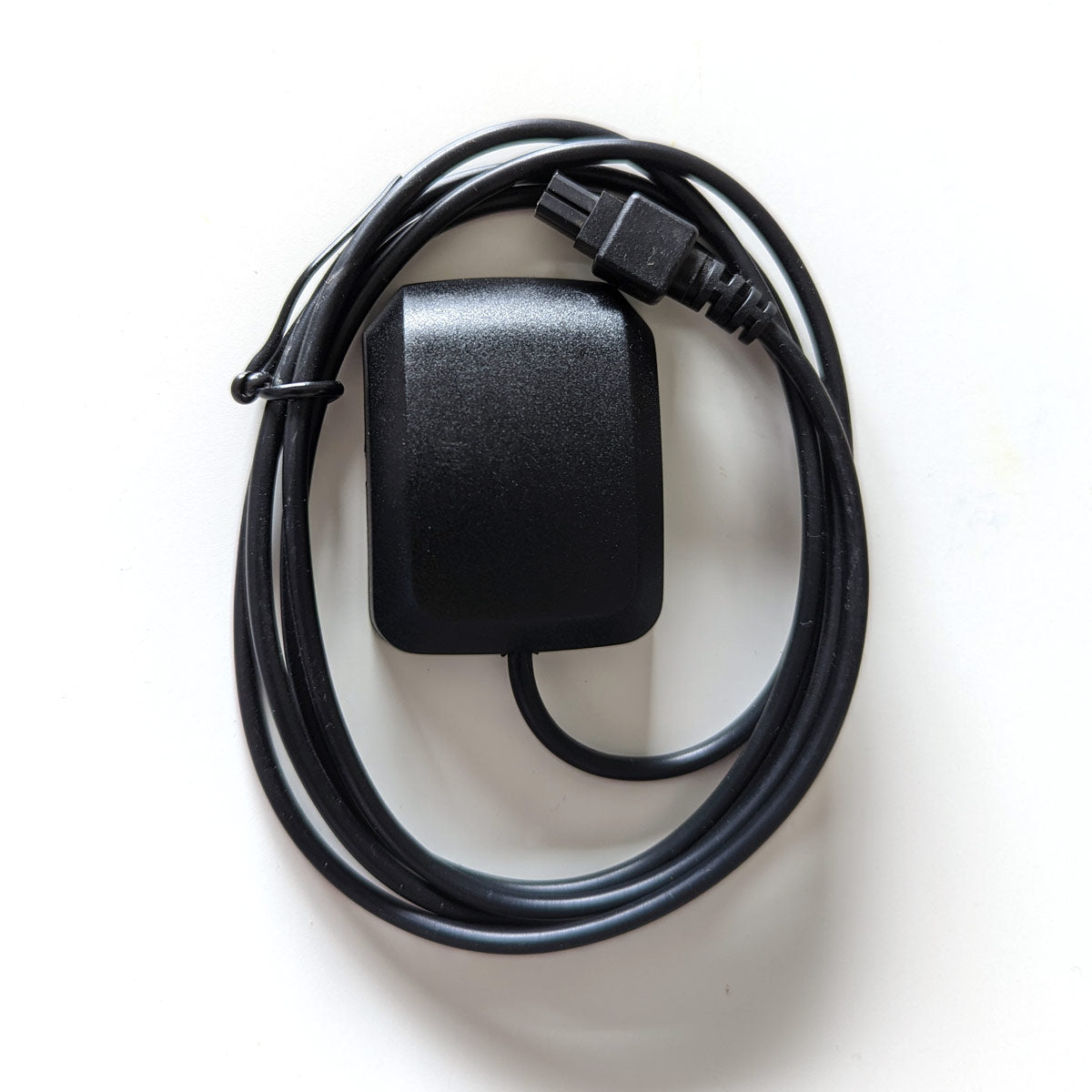

This GNSS receiver module is based on U-BLOX M10 solution with a 1m long cable. It works perfectly with TinyGPS Arduino library for retrieving geographic location (latitude and longitutde, altitude), velocity, heading course and UTC time.

• Concurrent reception of GPS/GAL/GLO/BDS
• 10Hz update rate (maximum)
• 3.3V/5V working voltage
• Industry leading –167 dBm navigation sensitivity
• Horizontal Pos. Accuracy: 1.5 m CEP
• Power consumption: 3.3V @ 41mA
• Operating temperature: -40°C to 85°C
• Hot Start: 1s
• Aided start: 2s
• Cold Start: 26s
• Ceramic Antena 25*25*2mm
• Module Size 25*28*7.5mm
• Enclosure Size 40x30x10mm
• LED indicator
• Serial Baudrate: 115200bps

• Introduction to GPS
• NMEA Reference Manual
• TinyGPS - NMEA parsing library for Arduino
